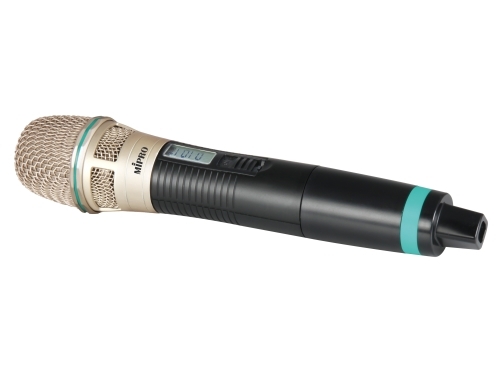

Mipro - ACT-50H Handheld Transmitter

Rugged, ergonomically designed metal housing.
Unique sturdy multi-layered steel grilles not only protect the capsule against impact, anti-roll and pop noise, but also ensure transparent sound clarity.
Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
Proprietary true condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality, and withstands maximum SPL.
Proprietary dynamic capsule exhibits low handling & impact noise characteristics.
Proprietary lockable silent on/off switch to avoid accidental power-off during performance.
Patented, integrated grille and battery housing design enable fast and easy 2 AA battery installation and replacement.
Impact-resistant battery compartment holds 2 AA batteries with color-coded rings for easy channel identification on stage.
LCD displays working channel, battery status indicator, and error code messages
Low spurious PLL-synthesized technology enhances frequency stability and reliability.
One-touch ACT syncs the transmitter and receiver frequency automatically.
Maximum 140dB SPL is achieved by the proprietary high dynamic range modulation circuitry.

Housing	Metal
Oscillation Mode	PLL Synthesized
Frequency Range	UHF 480~934MHz
Bandwidth	24MHz
Channel Set-Up	ACT Sync
RF Output Power	30mW (country dependent)
Spurious Emission	<-55dBc
Max. Input Level	140dB SPL
Display	LCD displays group, channel, battery status & error codes
Battery	2 AA alkaline
Dimensions	50(Ø)×253(L)mm / 2.0(Ø)x10(L)"
Weight	Approx. 301g / 10.6oz (excluding batteries)
Patents & Approvals	Patented. Telecom and safety regulations approved.
Notes	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
