- Compact ear-hook design for a secure, ultra comfortable fit.
- Supplied in three ear-hook sizes for ideal fit.
- Microphone boom can be worn on left or right hand side.
- Molded, 1-piece fixed microphone boom.
- MU-23 features subminiature 3mm omni-directional capsule.
- Resistant to moisture, perspiration and salts.
- Soft yet flexible thin boom bens 120° and holder can be height rotated for an ideal fit.
- Ideal for speech and vocal applications.
| |
|
| Capsule Diameter |
3mmØ omni-directional condenser capsule |

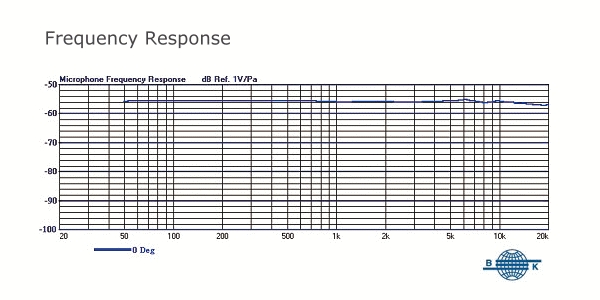

| Frequency Response |
40Hz~20kHz |
| Sensitivity |
-56dBV±3dBV/Pa (0dB=1V/Pa) |
| Maximum SPL |
138dB (Typical, 1%THD) |
| Microphone Holder |
Can be installed right or left side |
| Plug |
4-pin mini XLR (screw-lock) |
| Cable Length |
150cm / 59" |
| Color |
Beige |
| Weight |
Approx. 22g / 0.8oz |
| Note |
Refer to actual product in the event of specification discrepancies |
| |
|
| |
|
|
|
|
 |
 |
 |
 |
 |
| ACT-80T |
ACT-8Ta |
ACT-70T |
ACT-7T |
ACT-50T |
 |
|
|
|
|
| ACT-30T |
|
|
|
|
| |
|
|
|
|
|
|
