MM-707P Cardioid Condenser Microphone

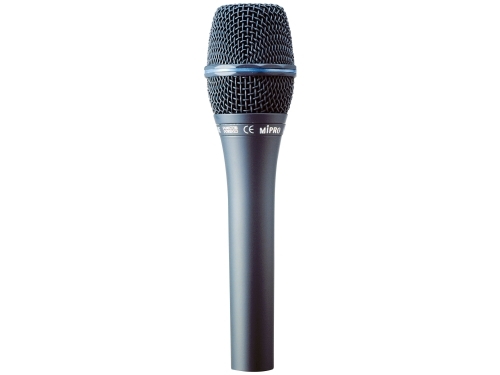

Mipro MM-707P Cardioid Condenser Microphone

Mipro MM-707P Cardioid Condenser Microphone







Spec Sheet Spec Sheet

Print

mail icon Send Mail


  • Key Features
  • Specifications
  • Related
  • Diagrams

Equipped with premium cardioid condenser microphone capsule. Uniform cardioid pickup pattern isolates the main sound source and minimizes background sound noise. Its precise polar pattern permits outstanding gain-before-feedback. Featuring high sensitivity, wide dynamic range, smooth frequency response and extremely low handing noises. MM-707P requires an external phantom power.


Type External Phantom Power
Housing Material Die-cast Zinc Alloy Housing
Directionality Cardioid
Sensitivity -46dBV/Pa (0dB=1V Open Load Voltage)
Frequency Response 50Hz~18kHz
Self-Noise 25dB SPL (A-Weighting)
Maximum SPL ≧148dB
Dynamic Range ≧123dB
S/N Ratio 69dB at 94dB SPL (1Pa)
Power Supply External Phantom Power 12-48V DC
Current Consumption 2.0mA
Output Impedance 200Ω
Weight 310g / 10.9oz

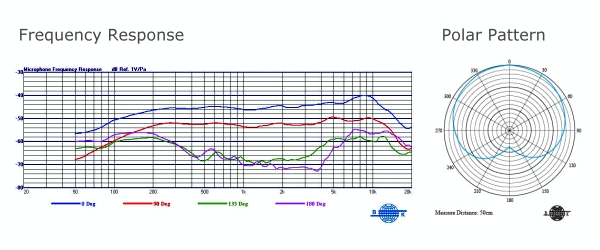

Mipro MM-707P Cardioid Condenser Microphone diagram
