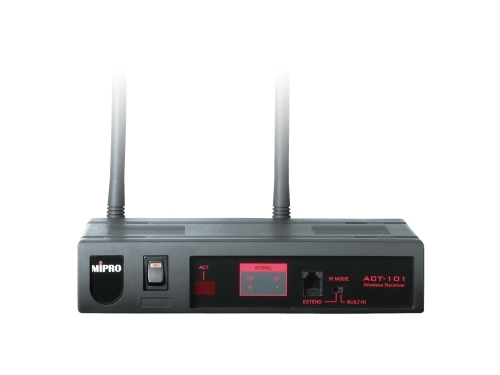

Mipro - ACT-101 IR Remote-Controlled Single-Channel Diversity Receiver

EIA standard 1/2U rack-mountable sturdy metal chassis with built-in single channel receiver module features shielding of spurious interference during performance.
Advanced diversity technology for the best elimination of signal dropout and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
97 built-in UHF frequencies and world first ACT function provides fast and automatic frequency set-up to the transmitters.
Output level is accurately pre-adjusted to equal to the microphone capsule sensitivity and ensures optimal performance.
Switching power supply ensures system stability during 100~240V AC.
Ideal for classrooms, meeting rooms, lecture halls and similar environments.


Channel	Single
Receiver Construction	Plastic Panel, Plastic Chassis
Assembly	Built-in Fixed Receiver Module
Display	RF and AF indicator
Oscillation Mode	PLL Synthesized, Frequency Stability?±0.005% (-10~+60℃)
Frequency Range	UHF 480~934MHz
Bandwidth	24MHz
Step	125kHz
Audio Input	Transmitter accepts Mic or Line input
Operating Mode	Remote controlled with ACT multi-functional transmitter
Sensitivity	6dBµV, at S/N>80dB, 40kHz
S/N Ratio	>100dB(A)
T.H.D.	<0.5% @ 1kHz
Frequency Response	50Hz~18kHz
Maximum Output Level	Unbalanced Line-level: -4dBV/5KO
Audio Output Connector	6.3mm (1/4")
Audio Output Adjustment	Output level accurately pre-adjusted to equal to the microphone capsule sensitivity
Squelch	PiloTone
AC Power Supply	External 100-240V AC Switching Power Supply, 12~15V DC, 0.5A
Dimensions	210(W)×44(H)×170(D)mm / 8.3(W)x1.7(H)x6.7(D)"
Weight	Approx. 0.6kg (1.3lbs)
Notes	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
